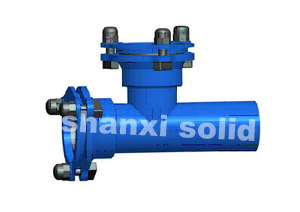

Socket Spigot Tees With Socket Branch,ductile iron pipe fittings,Flanged Pipe Fittings,ductile iron pipe fittings , flange fittings,flanged fittings

Trío spigot enchufe con roma enchufe 承插口三通带承口支口

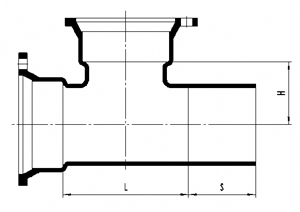

DN	dn	L	H	S	Mass without glands (kg)	Mass with glands (kg)	standard
80	80	170	85	150	14.00	15.96	EN545
100	80	170	95	150	16.80	19.38	EN545
100	100	190	95	150	18.50	21.70	EN545
150	80	170	120	200	25.00	28.18	EN545
150	100	195	120	200	27.00	30.80	EN545
150	150	255	125	200	33.00	37.40	EN545
200	80	175	145	200	32.20	36.38	EN545
200	100	200	145	200	34.70	39.50	EN545
200	150	255	150	200	41.20	46.60	EN545
200	200	315	155	200	46.70	53.10	EN545
250	80	200	210	200	42.00	46.18
250	100	200	215	200	44.30	49.10	EN545
250	150	255	220	200	56.30	62.90
250	200	315	225	200	58.80	66.40	EN545
250	250	375	230	200	66.80	75.60	EN545
300	100	205	235	200	57.90	64.70	EN545
300	150	260	240	200	71.90	79.30	EN545
300	200	320	245	200	75.40	83.80	EN545
300	250	375	250	200	89.50	99.10	EN545
300	300	435	260	200	97.40	107.80	EN545
350	100	205	260	200	68.50	76.60	EN545
350	150	260	265	200	85.50	94.20
350	200	325	270	200	88.50	98.20	EN545
350	250	375	275	200	106.00	116.90
350	300	435	285	200	112.50	124.20
350	350	495	290	200	123.50	136.50	EN545
400	100	210	285	200	81.20	90.60	EN545
400	150	265	290	200	100.00	110.00
400	200	325	295	200	103.00	114.00	EN545
400	250	375	300	200	125.00	137.20
400	300	435	310	200	129.00	142.00
400	350	495	315	200	149.00	163.30
400	400	560	320	200	156.00	171.60	EN545
450	100	215	320	200	114.00	126.30	EN545-B
450	150	270	320	200	115.00	127.90	EN545-B
450	200	325	320	200	118.00	131.90
450	250	375	325	200	144.00	159.10
450	300	445	335	200	147.00	162.90	EN545-B
450	350	495	340	200	171.00	188.20
450	400	560	345	200	175.00	193.50	EN545-B
450	450	620	350	200	190.00	211.40	EN545-B
500	100	215	345	200	120.00		EN545
500	150	275	345	200	132.00
500	200	330	345	200	135.00		EN545
500	250	380	350	200	165.00
500	300	450	360	200	166.00
500	350	500	365	200	194.00
500	400	565	370	200	197.00		EN545
500	450	620	375	200	228.00
500	500	680	380	200	229.00		EN545
600	100	220	395	200	169.00
600	150	285	395	200	170.00
600	200	340	395	200	173.00		EN545
600	250	380	400	200	200.00
600	300	455	410	200	209.00
600	350	500	415	200	240.00
600	400	570	420	200	245.00		EN545
600	450	620	425	200	277.00
600	500	685	430	200	289.00
600	600	800	440	200	323.00		EN545
700	100	345	445	200	215.00
700	150	345	445	200	232.00
700	200	345	445	200	228.00		EN545
700	300	575	460	200	270.00
700	400	575	470	200	311.00		EN545
700	500	810	460	200	370.00
700	600	810	490	200	400.00
700	700	925	500	200	453.00		EN545
800	100	350	495	200	264.00
800	150	350	495	200	274.00
800	200	350	495	200	278.00		EN545
800	300	580	510	200	327.00
800	400	580	520	200	375.00		EN545
800	500	815	530	200	447.00
800	600	815	540	200	553.00
800	700	1045	550	200	580.00
800	800	1045	565	200	595.00		EN545
900	100	355	545	200	333.00
900	150	355	545	200	359.00
900	200	355	545	200	360.00		EN545
900	300	590	570	200	468.00
900	400	590	570	200	474.00		EN545
900	500	820	590	200	660.00
900	600	820	590	200	729.00
900	700	1050	615	200	750.00
900	800	1050	615	200	767.00
900	900	1170	625	200	796.00		EN545
1000	100	360	595	250	425.00
1000	150	360	595	250	430.00
1000	200	360	595	250	432.00		EN545
1000	300	595	620	250	550.00
1000	400	595	620	250	563.00		EN545
1000	500	830	640	250	800.00
1000	600	830	640	250	915.00
1000	700	1055	665	250	940.00
1000	800	1055	665	250	950.00
1000	900	1290	685	250	985.00
1000	1000	1290	685	250	1012.00		EN545
1100	200	370	650	250
1100	400	600	670	250	649.00		EN545
1100	600	830	690	250	796.00		EN545
1100	800	1065	715	250	960.00
1100	1000	1295	735	250	1146.00
1100	1100	1410	745	250	1241.00
1200	100	375	700	250	649.00
1200	150	375	700	250	686.00
1200	200	375	700	250	726.00
1200	300	605	720	250	745.00
1200	400	605	720	250	755.00
1200	500	840	740	250	900.00
1200	600	840	740	250	925.00		EN545
1200	700	1070	765	250	1080.00
1200	800	1070	765	250	1104.00		EN545
1200	900	1300	785	250	1280.00
1200	1000	1300	785	250	1306.00		EN545
1200	1200	1535	805	250	1522.00
1400	100	385	820	300	792.00
1400	200	385	820	300	891.00
1400	400	800	820	300	1098.00
1400	600	1030	840	300	1412.00		EN545
1400	800	1260	865	300	1631.00		EN545
1400	1000	1495	885	300	1876.00		EN545
1400	1200	1725	905	300	2123.00
1400	1400	1960	930	300	2426.00
1600	100	400	920	300	1054.00
1600	200	400	920	300	1183.00
1600	400	810	920	300	1435.00
1600	600	1040	940	300	1792.00		EN545
1600	800	1275	965	300	2064.00		EN545
1600	1000	1505	985	300	2349.00		EN545
1600	1200	1740	1010	300	2646.00		EN545
1600	1400	1970	1030	300	2978.00
1600	1600	2200	1050	300	3332.00
1800	100	410	1020	380	1373.00
1800	200	410	1020	380	1525.00
1800	400	820	1020	380	1831.00
1800	600	1055	1040	380	2337.00		EN545
1800	800	1285	1065	380	2656.00		EN545
1800	1000	1520	1085	380	2998.00		EN545
1800	1200	1750	1110	380	3339.00		EN545
1800	1400	1980	1130	380	3717.00
1800	1600	2215	1150	380	4117.00
1800	1800	2445	1175	380	4563.00
2000	200	420	1120	380	2020.00
2000	400	830	1120	380	2299.00
2000	600	1065	1140	380	2855.00		EN545
2000	800	1300	1165	380	3240.00		EN545
2000	1000	1530	1185	380	3633.00		EN545
2000	1200	1760	1210	380	4030.00
2000	1400	1995	1230	380	4469.00		EN545
2000	1600	2225	1250	380	4912.00
2000	1800	2460	1275	380	5408.00
2000	2000	2690	1295	380	5935.00
2200	600	1080	1240	400	3600.00
2200	800	1310	1265	400	3842.00
2200	1000	1540	1285	400	4296.00
2200	1200	1775	1310	400	4763.00
2200	1400	2005	1330	400	5252.00
2200	1600	2240	1350	400	5760.00
2200	1800	2470	1375	400	6302.00
2200	2000	2700	1395	400	6873.00
2200	2200	2935	1415	400	7495.00
