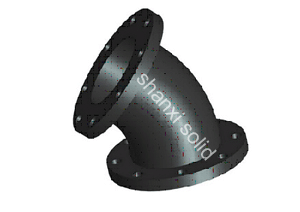

Curvas de brida doble 45 grados

Curvas de brida doble 45 grados
Ë«·¨À¼45¶ÈÍäÍ· |

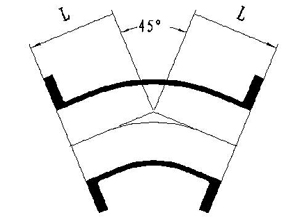

SIZE (in.) |
T (in.) |
L (in.) |
r (in.) |
Weight (lb) |
2 |
0.31 |
2.5 |
2.41 |
12 |
3 |
0.48 |
3 |
3.62 |
20 |
4 |
0.52 |
4 |
4.81 |
40 |
5 |
0.52 |
4.5 |
6.04 |
45 |
6 |
0.55 |
5 |
7.25 |
55 |
8 |
0.60 |
5.5 |
8.44 |
90 |
10 |
0.68 |
6.5 |
10.88 |
130 |
12 |
0.75 |
7.5 |
13.25 |
195 |
14 |
0.82 |
7.5 |
12.06 |
245 |
14 |
0.66 |
7.5 |
12.06 |
220 |
16 |
0.89 |
8 |
13.25 |
315 |
16 |
0.70 |
8 |
13.25 |
280 |
18 |
0.96 |
8.5 |
14.50 |
375 |
18 |
0.75 |
8.5 |
14.50 |
325 |
20 |
1.03 |
9.5 |
16.88 |
485 |
20 |
0.80 |
9.5 |
16.88 |
430 |
24 |
1.16 |
11 |
18.12 |
730 |
24 |
0.89 |
11 |
18.12 |
630 |
30 |
1.37 |
15 |
27.75 |
1335 |
30 |
1.03 |
15 |
27.75 |
1120 |
36 |
1.58 |
18 |
35.00 |
2155 |
36 |
1.15 |
18 |
35.00 |
1755 |
42 |
1.78 |
21 |
42.25 |
3240 |
42 |
1.28 |
21 |
42.25 |
2600 |
48 |
1.96 |
24 |
49.50 |
4485 |
48 |
1.42 |
24 |
49.50 |
3580 |
|
|
