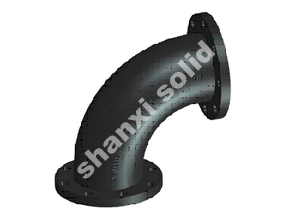

Con curvas de radio largo brida doble 双法兰长半径弯头

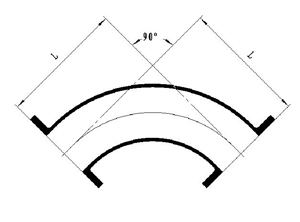

SIZE (in.)	T (in.)	L (in.)	r (in.)	Weight (lb)
2	0.31	6.5	5.00	16
3	0.48	7.75	6.25	30
4	0.52	9	7.00	50
5	0.52	10.25	8.25	65
6	0.55	11.5	9.50	80
8	0.60	14	12.00	145
10	0.68	16.5	14.50	230
12	0.75	19	17.00	350
14	0.82	21.5	19.00	470
16	0.89	24	21.50	670
18	0.96	26.5	24.00	840
20	1.03	29	26.50	1080
24	1.16	34	30.50	1640
30	1.37	41.5	38.00	2700
36	1.15	49		3285
42	1.28	56.5		4865
48	1.42	64		6790
