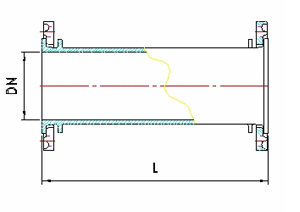

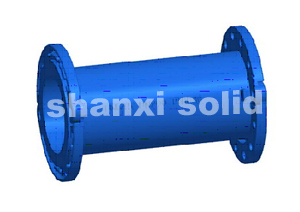

dbl Loosing Flanged Pipe 散法兰管
DN	L	Mass without loosing flanges (kg)	Mass with loosing flanges PN10 (kg)	Mass with loosing flanges PN16 (kg)	Standard
40	80	1.20	4.00	4.00	EN545
40	100	1.30	4.10	4.10	EN545
40	150	1.60	4.40	4.40	EN545
40	200	2.00	4.80	4.80	EN545
40	250	2.40	5.20	5.20	EN545
40	300	2.80	5.60	5.60	EN545
40	400	3.50	6.30	6.30	EN545
40	500	4.30	7.10	7.10	EN545
50	250	3.60	6.80	6.80	EN545
50	500	6.20	9.40	9.40	EN545
60	250	3.40	7.00	7.00	EN545
60	500	6.10	9.70	9.70	EN545
80	100	2.00	6.50	6.50	EN545
80	150	2.70	7.20	7.20	EN545
80	200	3.40	7.90	7.90	EN545
80	250	4.40	9.00	9.00	EN545
80	300	4.80	9.30	9.30	EN545
80	400	6.20	10.70	10.70	EN545
80	500	7.90	12.50	12.50	EN545
80	600	8.90	13.50	13.50	EN545
80	800	11.80	16.30	16.30	EN545
80	1000	14.60	19.10	19.10	EN545
100	100	2.90	7.90	7.90	EN545
100	150	3.50	8.50	8.50	EN545
100	200	4.40	9.40	9.40	EN545
100	250	5.60	10.60	10.60	EN545
100	300	6.20	11.20	11.20	EN545
100	400	7.90	12.90	12.90	EN545
100	500	10.00	15.00	15.00	EN545
100	600	11.50	16.50	16.50	EN545
100	800	15.00	20.00	20.00	EN545
100	1000	18.60	23.60	23.60	EN545
100	1000	23.00	28.00	28.00	EN545
125	250	7.30	13.70	13.70	EN545
125	500	13.00	19.40	19.40	EN545
125	800	19.50	25.90	25.90	EN545
125	1000	24.10	30.50	30.50	EN545
150	100	4.60	13.00	13.00	EN545
150	200	7.40	15.80	15.80	EN545
150	250	9.30	17.70	17.70	EN545
150	300	10.30	18.70	18.70	EN545
150	400	13.10	21.50	21.50	EN545
150	500	16.40	24.80	24.80	EN545
150	800	24.40	32.80	32.80	EN545
150	1000	30.00	38.40	38.40	EN545
200	100	6.80	18.80	18.60	EN545
200	150	8.80	20.80	20.60	EN545
200	200	10.80	22.80	22.60	EN545
200	250	13.70	25.70	25.50	EN545
200	300	14.80	26.80	26.60	EN545
200	400	18.80	30.80	30.60	EN545
200	500	23.80	35.80	35.60	EN545
250	250	18.40	35.60	34.80	EN545
250	500	31.80	49.00	48.20	EN545
300	250	24.00	46.60	45.20	EN545
300	500	41.00	63.60	62.20	EN545
