Ductile iron pipe fittings,pipe fittings

FLANGE ACCESSORIES FOR FLANGED FITTINGS IN ACCORDANCE WITH EN 545

FLANGE ACCESSORIES FOR FLANGED FITTINGS IN ACCORDANCE WITH EN 545
法兰附件用于EN 545法兰管件

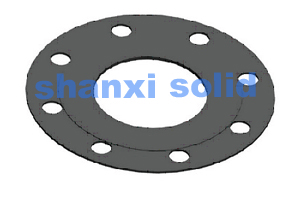

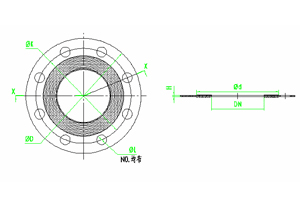

E.P.D.M. Flat Gasket in accordance with EN 681.1
E.P.D.M.法兰平垫,符合EN 681.1

pipe fittingspipe fittings

DN
No. (PN10)
No. (PN16)
H
PN16Unit weight (kg)
40
4
4
2
0.07
50
4
4
2
0.09
60
4
4
2
0.1
65
4
4
2
0.11
80
8
8
2
0.12
100
8
8
2
0.15
125
8
8
2
0.18
150
8
8
2
0.23
200
8
12
2
0.29
250
12
12
2
0.37
300
12
12
3
0.57
350
16
16
3
0.73
400
16
16
4
1.03
450
20
20
4
1.23
500
20
20
5
1.82
600
20
20
5
2.42

Carbon Steel Grate 4.8 Hex Bolt and Nut
低碳钢六角螺栓螺母

bolt and nutbolt and nutsbolt and nut

DN
PN10
PN16
SIZE (mm)
NO.
SIZE (mm)
NO.
40
M16x65
4
M16x65
4
50
M16x65
4
M16x65
4
60
M16x65
4
M16x65
4
65
M16x65
4
M16x65
4
80
M16x65
8
M16x65
8
100
M16x65
8
M16x65
8
125
M20x70
8
M20x70
8
150
M20x70
8
M20x70
8
200
M20x70
8
M20x70
12
250
M20x80
12
M24x65
12
300
M20x80
12
M24x85
12
350
M20x80
16
M24x85
16
400
M24x85
16
M27x100
16
450
M24x85
20
M27x100
20
500
M24x85
20
M30x115
20
600
M27x100
20
M33x120
20
