PUSH-IN ACCESSORIES FOR TYTON FITTINGS IN ACCORDANCE WITH EN 545

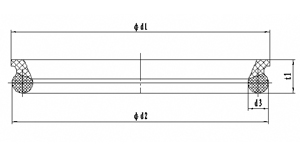

PUSH-IN ACCESSORIES FOR TYTON FITTINGS IN ACCORDANCE WITH EN 545 承插式附件用于EN 545 T型管件 E.P.D.M. Push-in Gasket in accordance with EN 681.1 E.P.D.M.承插式胶圈,符合EN 681.1
DN	d1	d2	d3	t1	Unit weight (kg)
80	126	124	16	24	0.15
100	146	144	16	26	0.16
125	172	170	16	26	0.21
150	200	198	16	26	0.27
200	256	254	18	30	0.41
250	310	308	18	32	0.55
300	366	364	20	34	0.79
350	420	418	20	34	0.96
400	475	473	22	38	1.18
450	528	526	23	38	1.42
500	583	581	24	42	1.98
600	692	690	26	46	2.57

Note: The accessories for Tyton fittings are usually supplied by assembled on the fittings.
注：T型管件的附件通常是装配在管件上供货的。
