MECHANICAL JOINT ACCESSORIES FOR MJ FITTINGS IN ACCORDANCE WITH EN 545

MECHANICAL JOINT ACCESSORIES FOR MJ FITTINGS IN ACCORDANCE WITH EN 545 机械式附件用于EN 545 MJ型管件 D.I. MJ Gland in accordance with ISO 1083 球铁MJ压盖，符合ISO 1083
DN	Unit weight (kg)	standard
60	0.76	EN545
80	0.98	EN545
100	1.60	EN545
125	1.90	EN545
150	2.20	EN545
200	3.20	EN545
250	4.40	EN545
300	5.20	EN545
350	6.50	EN545
400	7.80	EN545
450	10.70	EN545
500	15.20	EN545
600	20.00	EN545

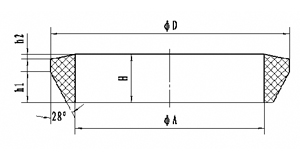

E.P.D.M. MJ Gasket in accordance with EN 681.1 E.P.D.M.MJ胶圈，符合EN 681.1
DN	D	A	H	h1	h2	Unit weight (kg)
60	102	77	27	16	3	0.10
80	123	98	27	16	3	0.13
100	149	118	30	19	3	0.20
125	175	144	30	19	3	0.24
150	201	170	30	19	3	0.28
200	253.5	222	30	19	3	0.36
250	305.5	274	30	19	3	0.45
300	357.5	326	30	19	3	0.53
350	409.5	378	30	19	3	0.60
400	460	429	30	19	3	0.67
450	512	480	30	19	3	0.78
500	563	532	30	19	3	0.84
600	666	635	30	19	3	1.00

D.I. T-Bolt & Nut in accordance with ISO 1083 球铁T型螺栓螺母，符合ISO 1083
DN	No.	Unit weight (kg)
60	2	0.39
80	3	0.39
100	3	0.39
125	3	0.39
150	4	0.39
200	5	0.39
250	6	0.39
300	7	0.39
350	8	0.39
400	8	0.39
450	8	0.42
500	10	0.42
600	12	0.42
The coating of the bolt and nut can be epoxy or bitumen.螺栓螺母的涂层可以使环氧喷塑或沥青漆。
Note: The accessories for MJ fittings are usually supplied by assembled on the fittings.注：MJ型管件的附件通常是装配在管件上供货的。
