EXPRESS ACCESSORIES FOR EX FITTINGS IN ACCORDANCE WITH EN 545

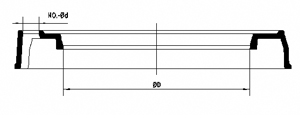

EXPRESS ACCESSORIES FOR EX FITTINGS IN ACCORDANCE WITH EN 545 快速连接附件用于EN 545 EX型管件 D.I. EX Gland in accordance with ISO 1083 球铁EX压盖，符合ISO 1083
DN	Unit weight (kg)	standard
60	2.6	EN545
80	2.80	EN545
100	3.00	EN545
125	3.30	EN545
150	4.10	EN545
200	5.20	EN545
250	5.40	EN545
300	8.20	EN545
350	9.00	EN545
400	11.20	EN545
450	19.00	EN545
500	20.00	EN545
600	26.50	EN545

E.P.D.M. EX Gasket in accordance with EN 681.1 E.P.D.M.EX胶圈，符合EN 681.1
DN	D	A	H	R	TYPE	Unit weight (kg)
60	94	74	16		M	0.05
80	121	96.5	22		M	0.09
100	147.5	116.5	25		M	0.11
125	173.5	142.5	25		M	0.18
150	199.7	168.5	25		M	0.25
200	251.9	220.5	25		M	0.33
250	302	272	24	14	N	0.44
300	358	324	25.5	16	N	0.55
350	412	376	27	17	N	0.70
400	463	427	27	17	N	0.71
450	517	478	28.5	18	N	1.07
500	569	530	28.5	18	N	1.20
600	678	633	30	21	N	1.70

D.I. Hooked Bolt & Nut in accordance with ISO 1083 球铁钩头螺栓螺母，符合ISO 1083
DN	No.	Unit weight (kg)
60	2	0.42
80	3	0.42
100	3	0.42
125	3	0.42
150	4	0.42
200	5	0.42
250	6	0.42
300	7	0.42
350	8	0.42
400	9	0.42
450	8	0.42
500	10	0.5
600	12	0.5
The coating of the bolt & nut can be epoxy or bitumen.螺栓螺母的涂层可以使环氧喷塑或沥青漆。
Note: The accessories for EX fittings are usually supplied by assembled on the fittings.注：EX型管件的附件通常是装配在管件上供货的。
