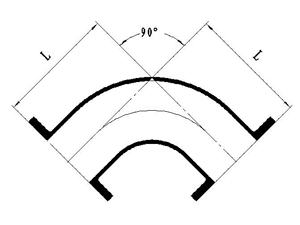

Double Flanged 90 Deg Bends

Double Flanged 90 Deg Bends
Ë«·¨À¼90¶ÈÍäÍ· |
SIZE (in.) |
T (in.) |
L (in.) |
r (in.) |
Weight (lb) |
2 |
0.31 |
4.5 |
3.00 |
12 |
3 |
0.48 |
5.5 |
4.00 |
25 |
4 |
0.52 |
6.5 |
4.50 |
45 |
5 |
0.52 |
7.5 |
5.50 |
52 |
6 |
0.55 |
8 |
6.00 |
65 |
8 |
0.60 |
9 |
7.00 |
105 |
10 |
0.68 |
11 |
9.00 |
165 |
12 |
0.75 |
12 |
10.00 |
235 |
14 |
0.82 |
14 |
11.50 |
330 |
14 |
0.66 |
14 |
11.50 |
290 |
16 |
0.89 |
15 |
12.50 |
430 |
16 |
0.70 |
15 |
12.50 |
370 |
18 |
0.96 |
16.5 |
14.00 |
530 |
18 |
0.75 |
16.5 |
14.00 |
450 |
20 |
1.03 |
18 |
15.50 |
685 |
20 |
0.80 |
18 |
15.50 |
580 |
24 |
1.16 |
22 |
18.50 |
1085 |
24 |
0.89 |
22 |
18.50 |
900 |
30 |
1.37 |
25 |
21.50 |
1755 |
30 |
1.03 |
25 |
21.50 |
1430 |
36 |
1.58 |
28 |
24.50 |
2690 |
36 |
1.15 |
28 |
24.50 |
2135 |
42 |
1.78 |
31 |
27.50 |
3880 |
42 |
1.28 |
31 |
27.50 |
3055 |
48 |
1.96 |
34 |
30.50 |
5210 |
48 |
1.42 |
34 |
30.50 |
4095 |
|
|
