Ductile iron pipe fittings

Double Flanged 22.5 Deg Bends

pipe fittingsdouble flanged

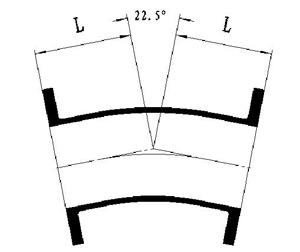

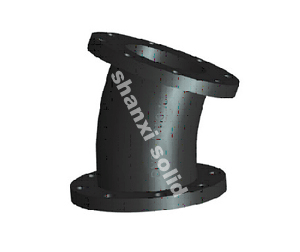

Double Flanged 22.5 Deg Bends
Ë«·¨À¼22.5¶ÈÍäÍ·

SIZE (in.)
T (in.)
L (in.)
r (in.)
Weight (lb)
2
0.31
2.5
6.04
12
3
0.48
3
7.66
20
4
0.52
4
10.06
40
5
0.52
4.5
10.86
45
6
0.55
5
15.06
55
8
0.60
5.5
17.62
90
10
0.68
6.6
22.62
135
12
0.75
7.5
27.62
205
14
0.82
7.5
25.12
250
14
0.66
7.5
25.12
225
16
0.89
8
27.62
325
16
0.70
8
27.62
285
18
0.96
8.5
30.19
385
18
0.75
8.5
30.19
335
20
1.03
9.5
35.19
505
20
0.80
9.5
35.19
435
24
1.16
11
37.69
755
24
0.89
11
37.69
640
30
1.37
15
57.81
1385
30
1.03
15
57.81
1135
36
1.58
18
72.88
2235
36
1.15
18
72.88
1790
42
1.78
21
88.00
3365
42
1.28
21
88.00
2665
48
1.96
24
103.06
4660
48
1.42
24
103.06
3665
