Double Flanged Reducing Long Radius Bends

pipe

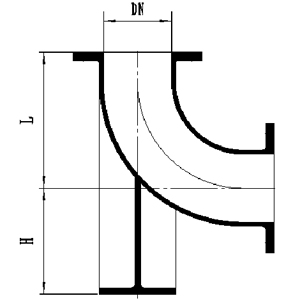

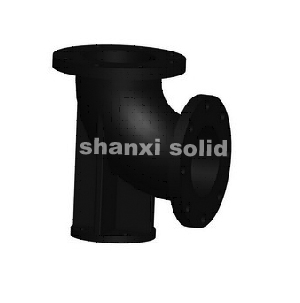

Double Flanged Base Bends
Ë«·¨À¼Ñ¼½ÅÍäÍ·

SIZE (in.)
T (in.)
H (in.)
S Diam. (in.)
T1 (in.)
U (in.)
Weight (lb)
3
0.48
4.88
5.00
0.56
0.50
35
4
0.52
5.50
6.00
0.62
0.50
55
6
0.55
7.00
7.00
0.69
0.62
85
8
0.60
8.38
9.00
0.94
0.88
145
10
0.68
9.75
9.00
0.94
0.88
210
12
0.75
11.25
11.00
1.00
1.00
300
14
0.82
12.50
11.00
1.00
1.00
400
14
0.66
12.50
11.00
1.00
1.00
360
16
0.89
13.75
11.00
1.00
1.00
505
16
0.70
13.75
11.00
1.00
1.00
445
18
0.96
15.00
13.50
1.12
1.12
645
18
0.75
15.00
13.50
1.12
1.12
565
20
1.03
16.00
13.50
1.12
1.12
805
20
0.80
16.00
13.50
1.12
1.12
700
24
1.16
18.50
13.50
1.12
1.12
1215
24
0.89
18.50
13.50
1.12
1.12
1030
30
1.37
23.00
16.00
1.19
1.15
1945
30
1.03
23.00
16.00
1.19
1.15
1625
36
1.58
26.00
19.00
1.25
1.15
2940
36
1.15
26.00
19.00
1.25
1.15
2385
42
1.78
30.00
23.50
1.44
1.28
4290
42
1.28
30.00
23.50
1.44
1.28
3465
48
1.96
34.00
25.50
1.56
1.42
5725
48
1.42
34.00
25.50
1.56
1.42
4610
