All Flanged Base Tees

All Flanged Base Tees
全法兰带座三通

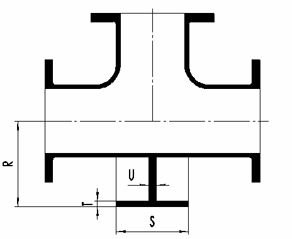

SIZE (in.)
T (in.)
R (in.)
S (in.)
T1 (in.)
U (in.)
Weight (lb)
3
0.48
4.88
5
0.56
0.50
45
4
0.52
5.50
6
0.62
0.50
75
6
0.55
7.00
7
0.69
0.62
110
8
0.60
8.38
9
0.94
0.88
185
10
0.80
9.75
9
0.94
0.88
300
12
0.87
11.25
11
1.00
1.00
430
14
0.82
12.50
11
1.00
1.00
550
14
0.66
12.50
11
1.00
1.00
485
16
0.89
13.75
11
1.00
1.00
685
16
0.70
13.75
11
1.00
1.00
600
18
0.96
15.00
13.5
1.12
1.12
860
18
0.75
15.00
13.5
1.12
1.12
740
20
1.03
16.00
13.5
1.12
1.12
1080
20
0.80
16.00
13.5
1.12
1.12
930
24
1.16
18.50
13.5
1.12
1.12
1665
24
0.89
18.50
13.5
1.12
1.12
1410
30
1.37
23.00
16
1.19
1.15
2735
30
1.03
23.00
16
1.19
1.15
2270
36
1.58
26.00
19
1.25
1.15
4090
36
1.15
26.00
19
1.25
1.15
3320
42
1.78
30.00
23.5
1.44
1.28
5850
48
1.96
34.00
25
1.56
1.42
7720
