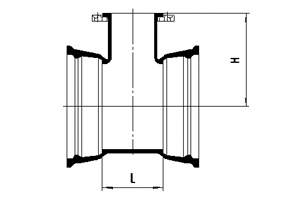

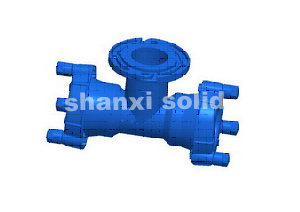

Double EX Socket Tee with Loosing Flanged Branch

double ex socket tee with loosing flanged branch

Double EX Socket Tee with Loosing Flanged Branch
EX双承散法兰支口三通

DN
dn
L
H
Mass without glands (kg)
Mass with glands (kg)
Mass completely (kg)
PN10
PN16
PN10
PN16
PN10
PN16
80
40
145
160
12.10
12.10
17.70
17.70
20.22
20.22
80
60
145
160
12.20
12.20
17.80
17.80
20.32
20.32
80
65
145
160
12.50
12.50
18.10
18.10
20.62
20.62
80
80
170
175
14.00
14.00
19.60
19.60
22.12
22.12
100
65
145
170
14.30
14.30
20.30
20.30
22.82
22.82
100
80
170
175
15.90
15.90
21.90
21.90
24.42
24.42
100
100
190
180
17.50
17.50
23.50
23.50
26.02
26.02
125
65
145
170
16.30
16.30
22.90
22.90
25.42
25.42
125
80
170
190
17.80
17.80
24.40
24.40
26.92
26.92
125
100
195
195
19.50
19.50
26.10
26.10
28.62
28.62
150
60
150
200
19.80
19.80
28.00
28.00
31.36
31.36
150
65
150
200
20.00
20.00
28.20
28.20
31.56
31.56
150
80
170
205
20.90
20.90
29.10
29.10
32.46
32.46
150
100
195
210
23.00
23.00
31.20
31.20
34.56
34.56
150
125
225
215
26.10
26.10
34.30
34.30
37.66
37.66
150
150
255
220
29.20
29.20
37.40
37.40
40.76
40.76
200
60
150
230
26.60
26.60
37.00
37.00
41.20
41.20
200
80
175
235
27.80
27.80
38.20
38.20
42.40
42.40
200
100
200
240
29.80
29.80
40.20
40.20
44.40
44.40
200
125
225
245
32.50
32.50
42.90
42.90
47.10
47.10
200
150
255
250
35.90
35.90
46.30
46.30
50.50
50.50
200
200
315
260
43.00
42.90
53.40
53.30
57.60
57.50
250
60
175
260
40.40
40.40
51.20
51.20
56.24
56.24
250
65
175
260
38.80
38.80
49.60
49.60
54.64
54.64
250
80
175
265
39.50
39.50
50.30
50.30
55.34
55.34
250
100
175
270
40.30
40.30
51.10
51.10
56.14
56.14
250
150
240
280
47.80
47.80
58.60
58.60
63.64
63.64
250
200
355
290
58.50
58.40
69.30
69.20
74.34
74.24
250
250
355
300
67.60
67.20
78.40
78.00
83.44
83.04
300
60
180
290
49.80
49.80
66.20
66.20
72.08
72.08
300
80
180
295
50.70
50.70
67.10
67.10
72.98
72.98
300
150
235
310
59.30
59.30
75.70
75.70
81.58
81.58
300
200
360
320
72.20
72.20
88.60
88.60
94.48
94.48
300
250
360
330
77.30
77.70
93.70
94.10
99.58
99.98
300
300
435
340
94.70
94.00
111.10
110.40
116.98
116.28
350
100
180
330
78.10
78.10
96.10
96.10
102.82
102.82
350
150
245
340
92.20
92.20
110.20
110.20
116.92
116.92
350
200
360
350
97.30
97.20
115.30
115.20
122.02
121.92
350
250
360
360
109.60
109.20
127.60
127.20
134.32
133.92
350
350
480
380
114.20
115.00
132.20
133.00
138.92
139.72
400
100
220
360
74.00
74.00
96.40
96.40
103.96
103.96
400
150
310
370
86.60
86.60
109.00
109.00
116.56
116.56
400
200
310
380
90.90
90.80
113.30
113.20
120.86
120.76
400
250
420
390
113.00
112.60
135.40
135.00
142.96
142.56
400
300
420
400
114.40
113.70
136.80
136.10
144.36
143.66
400
400
540
420
142.60
147.10
165.00
169.50
172.56
177.06
450
100
250
390
93.40
93.40
131.40
131.40
138.12
138.12
450
200
370
410
118.10
118.00
156.10
156.00
162.82
162.72
450
300
485
430
148.20
147.50
186.20
185.50
192.92
192.22
450
400
600
450
180.00
184.30
218.00
222.30
224.72
229.02
450
450
600
460
192.80
200.80
230.80
238.80
237.52
245.52
500
100
255
420
114.40
114.40
154.40
154.40
164.40
164.40
500
150
255
430
118.50
118.50
158.50
158.50
168.50
168.50
500
200
370
440
133.80
133.70
173.80
173.70
183.80
183.70
500
250
370
450
145.40
145.00
185.40
185.00
195.40
195.00
500
300
485
460
161.90
161.20
201.90
201.20
211.90
211.20
500
400
600
480
193.20
197.70
233.20
237.70
243.20
247.70
500
500
660
500
241.00
253.00
281.00
293.00
291.00
303.00
600
100
260
480
147.00
147.00
200.00
200.00
212.00
212.00
600
200
375
500
174.10
174.00
227.10
227.00
239.10
239.00
600
300
490
520
206.70
206.00
259.70
259.00
271.70
271.00
600
400
610
540
241.70
246.20
294.70
299.20
306.70
311.20
600
600
780
580
352.00
372.00
405.00
425.00
417.00
437.00
