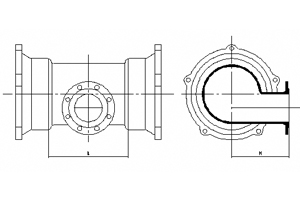

Double Socket Level Invert Tees With Flanged Branch 双承法兰支口水平三通
DN	dn	L	H	Mass without glands (kg)			Mass with glands (kg)			standard
DN	dn	L	H	PN10	PN16	PN25	PN10	PN16	PN25	standard
200	80	245	250	43.00	43.00	43.00	49.40	49.40
250	80	250	275	54.00	54.00	54.00	62.80	62.80
300	80	255	300	73.50	73.50	73.50	83.90	83.90
350	100	280	325	90.50	90.50	91.00	103.50	103.50
400	100	280	350	107.00	107.00	108.00	122.60	122.60
450	100	285	375	125.00	125.00	126.00	146.40	146.40
500	100	290	400	143.00	143.00	144.00
600	100	295	450	183.00	183.00	183.00
700	150	360	500	255.00	255.00	256.00
800	150	365	550	310.00	310.00	311.00
900	150	370	600	382.00	382.00	383.00
1000	200	435	650	501.00	501.00	503.00
1100	200	440	700	584.00	584.00	586.00
1200	200	445	750	679.00	679.00	681.00
1400	200	460	850	939.00	939.00	940.00
1500	200	465	900	1062.00	1062.00	1064.00
1600	400	700	950	1472.00	1476.00	1487.00
1800	400	715	1050	1872.00	1876.00	1887.00
2000	400	725	1150	2325.00	2325.00	2336.00
2100	400	730	1200	2539.00	2544.00	2555.00
2200	400	735	1250	2802.00	2807.00	2818.00
2400	400	750	1350	3347.00	3351.00	3362.00
2600	400	760	1450	4136.00	4140.00	4151.00
