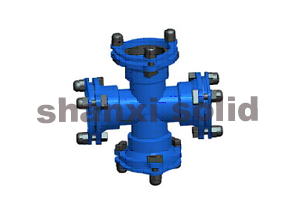

All Socket Crosses 全承十字通

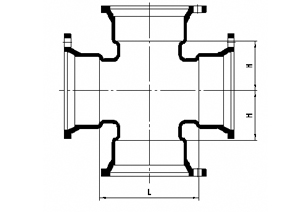

DN	dn	L	H	Mass without glands (kg)	Mass with glands (kg)	standard
100	100	190	95	29.3	35.7	EN545
150	100	195	120	36.4	44	EN545
150	150	255	125	43.8	52.6	EN545
200	100	200	145	43.4	53	EN545
200	150	255	150	51.2	62	EN545
200	200	315	155	59.7	72.5	EN545
250	100	200	170	52.4	64.4	EN545
250	150	260	175	65.8	79	EN545
250	200	315	180	71.4	86.6	EN545
250	250	375	190	80.7	98.3	EN545
300	100	205	195	71.2	84.8	EN545
300	150	260	200	87	101.8	EN545
300	200	320	205	92.8	109.6	EN545
300	250	375	210	107	126.2	EN545
300	300	435	220	123	143.8	EN545
350	200	320	235	107	126.4
350	250	380	240	123	144.8
350	300	440	245	144	167.4
350	350	495	250	157	183	EN545
400	200	325	255	122	144	EN545
400	250	385	265	143	167.4	EN545-B
400	300	440	270	163	189	EN545
400	350	500	275	178	206.6
400	400	560	280	198	229.2	EN545
500	250	390	315	183
500	300	450	320	208
500	350	505	325	223
500	400	565	330	239		EN545
500	500	680	340	284		EN545
600	300	455	370	256
600	350	510	375	274
600	400	570	380	284		EN545
600	500	685	390	332
600	600	800	400	392		EN545
700	350	520	425	410
700	400	575	430	441		EN545
700	500	690	440	510
700	600	810	450	589
700	700	925	460	691		EN545
800	400	580	480	527
800	500	700	490	608
800	600	815	500	692
800	700	930	510	796
800	800	1045	525	914		EN545
900	500	705	540	729
900	600	820	550	823
900	700	935	560	930
900	800	1050	575	1052
900	900	1170	585	1205		EN545
1000	600	825	600	1033
1000	700	940	610	1120
1000	800	960	625	1251
1000	900	1175	635	1404
1000	1000	1290	645	1612		EN545
1100	700	950	660	1257
1100	800	1065	675	1390
1100	900	1180	685	1549
1100	1000	1295	695	1759
1100	1100	1410	705	1922
1200	800	1070	725	1652		EN545
1200	900	1185	735	1818
1200	1000	1300	745	2034		EN545
1200	1100	1420	755	2701
1200	1200	1535	765	2497
1400	900	1200	835	2232
1400	1000	1315	845	2468		EN545
1400	1100	1430	855	2639
1400	1200	1545	865	2940
1400	1400	1780	890	3446
