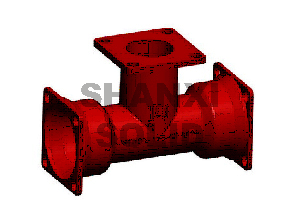

MJxFlange Tees

MJxFlange Tees
MJx·¨À¼ Èýͨ |

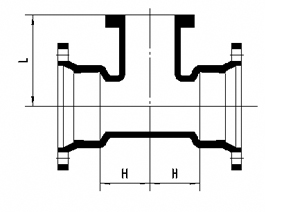

Size (in) |
T (in) |
T1 (in) |
H (in) |
L (in) |
Weight (lb) |
Run |
Branch |
3 |
3 |
0.33 |
0.33 |
3.00 |
5.50 |
28 |
4 |
4 |
0.34 |
0.34 |
4.00 |
6.50 |
38 |
6 |
3 |
0.36 |
0.33 |
3.50 |
8.00 |
51 |
6 |
4 |
0.36 |
0.34 |
4.00 |
8.00 |
54 |
6 |
6 |
0.36 |
0.36 |
5.00 |
8.00 |
56 |
8 |
3 |
0.38 |
0.33 |
4.00 |
9.00 |
70 |
8 |
4 |
0.38 |
0.34 |
4.00 |
9.00 |
72 |
8 |
6 |
0.38 |
0.36 |
5.00 |
9.00 |
83 |
8 |
8 |
0.38 |
0.38 |
6.50 |
9.00 |
94 |
10 |
4 |
0.40 |
0.34 |
4.00 |
11.00 |
89 |
10 |
6 |
0.40 |
0.36 |
5.00 |
11.00 |
107 |
10 |
8 |
0.40 |
0.38 |
6.50 |
11.00 |
115 |
10 |
10 |
0.40 |
0.40 |
7.50 |
11.00 |
130 |
12 |
4 |
0.42 |
0.34 |
4.00 |
12.00 |
115 |
12 |
6 |
0.42 |
0.36 |
5.00 |
12.00 |
120 |
12 |
8 |
0.42 |
0.38 |
6.50 |
12.00 |
146 |
12 |
10 |
0.42 |
0.40 |
7.50 |
12.00 |
174 |
12 |
12 |
0.42 |
0.42 |
8.75 |
12.00 |
198 |
16 |
6 |
0.50 |
0.36 |
6.50 |
15.00 |
213 |
16 |
8 |
0.50 |
0.38 |
7.50 |
15.00 |
260 |
16 |
10 |
0.50 |
0.40 |
8.50 |
15.00 |
287 |
16 |
12 |
0.50 |
0.42 |
9.50 |
15.00 |
312 |
18 |
6 |
0.54 |
0.36 |
6.50 |
15.50 |
261 |
20 |
6 |
0.57 |
0.36 |
6.50 |
17.00 |
345 |
20 |
8 |
0.57 |
0.38 |
8.00 |
17.00 |
384 |
24 |
6 |
0.61 |
0.36 |
7.00 |
19.00 |
460 |
24 |
8 |
0.61 |
0.38 |
8.00 |
19.00 |
418 |
