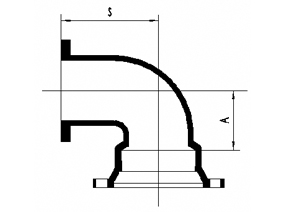

MJ x Flange 90 Deg Bends

MJ x Flange 90 Deg Bends
MJ x ·¨À¼ 90¶ÈÍäÍ· |
SIZE (in) |
T (in) |
A (in) |
S (in) |
Weight (lb) |
3 |
0.33 |
3.50 |
5.50 |
21 |
4 |
0.34 |
4.00 |
6.50 |
28 |
6 |
0.36 |
5.00 |
8.00 |
46 |
8 |
0.38 |
6.50 |
9.00 |
71 |
10 |
0.40 |
7.50 |
11.00 |
121 |
12 |
0.42 |
9.00 |
12.00 |
155 |
14 |
0.47 |
11.50 |
14.00 |
243 |
16 |
0.50 |
12.50 |
15.00 |
280 |
18 |
0.54 |
14.00 |
16.50 |
388 |
20 |
0.57 |
15.00 |
18.00 |
441 |
24 |
0.61 |
16.75 |
22.00 |
618 |
30 |
0.66 |
21.50 |
25.00 |
1200 |
