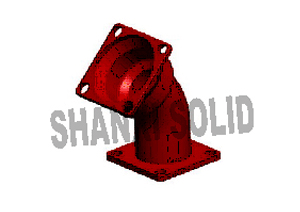

MJ x Flange 45 Deg Bends

MJ x Flange 45 Deg Bends
MJ x ·¨À¼ 45¶ÈÍäÍ· |

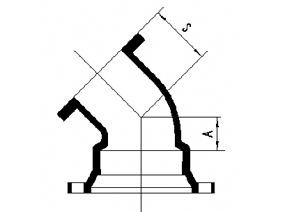

SIZE (in) |
T (in) |
A (in) |
S (in) |
Weight (lb) |
3 |
0.33 |
1.50 |
3.00 |
17 |
4 |
0.34 |
2.00 |
4.00 |
34 |
6 |
0.36 |
3.00 |
5.00 |
57 |
8 |
0.38 |
3.50 |
5.50 |
83 |
10 |
0.40 |
4.50 |
6.50 |
122 |
12 |
0.42 |
5.50 |
7.50 |
159 |
14 |
0.47 |
5.00 |
7.50 |
202 |
16 |
0.50 |
5.50 |
8.00 |
290 |
18 |
0.54 |
6.00 |
8.50 |
312 |
20 |
0.57 |
7.00 |
9.50 |
338 |
24 |
0.61 |
7.50 |
11.00 |
442 |
30 |
0.66 |
10.50 |
15.00 |
1057 |
